S3220E
26 ft Working Height
900 lbs Platform Capacity
4,500 lbs Weight

S3220E

The Snorkel S3220E electric scissor lift features deep cycle batteries, a high lift capacity, and a robust all-steel construction. Designed for a long working life, the S3220E delivers low total ownership costs. Equipped with a telescopic roll-out deck extension and proportional controls, including descent, this lift offers complete on-the-job versatility.

Specifications

Max. working height
Max. platform height
Platform size (stowed)
Platform size (extended)
Deck extension length
Overall length (with step)
Overall length (without step)
Overall width
Stowed height
Min. height (guardrails folded)
Ground clearance (stowed)
Ground clearance (elevated)
Platform capacity (SWL)
Max. wind speed
Max. drive height
Max. drive speed (elevated)
Max. drive speed (stowed)
Raise/lower time
Gradeability
Inside turning radius
Outside turning radius
Tires
Controls
Drive system
Power source
Charger
Weight
Max. working height (ANSI metric)
Max. platform height (ANSI metric)
Platform size (stowed) (ANSI metric)
Platform size (extended) (ANSI metric)
Deck extension length (ANSI metric)
Overall length (with step) (ANSI metric)
Overall length (without step) (ANSI metric)
Overall width (ANSI metric)
Stowed Height (ANSI Metric)
Min. height (guardrails folded) (ANSI metric)
Ground clearance (stowed) (ANSI metric)
Platform capacity (SWL - ANSI metric)
Max. wind speed (ANSI metric)
Max. drive height (ANSI metric)
Max. drive speed (stowed) (ANSI metric)
Max. drive speed (elevated) (ANSI metric)
Raise/lower time (ANSI Metric)
Gradeability (ANSI metric)
Inside turning radius (ANSI metric)
Outside turning radius (ANSI metric)
Tires (ANSI metric)
Drive system (ANSI metric)
Controls (ANSI metric)
Power source (ANSI Metric)
Charger (ANSI metric) -- NOTE: **Charger (CE metric) is out of alphabetical order - see next page
Weight (ANSI Metric)
Max. working height (CE Imperial)
Max. platform height (CE imperial)
Platform size (stowed) (CE imperial)
Platform size (extended) (CE imperial)
Deck extension length (CE imperial)
Overall length (with step) (CE imperial)
Overall length (without step) (CE imperial)
Overall width (CE imperial)
Stowed Height (CE Imperial)
Min. height (guardrails folded) (CE imperial)
Ground clearance (stowed) (CE imperial)
Ground clearance (elevated) (CE imperial)
Platform capacity (SWL - CE Imperial)
Max. wind speed (CE imperial)
Max. drive height (CE imperial)
Max. drive speed (stowed) (CE imperial)
Max. drive speed (elevated) (CE imperial)
Raise/lower time (CE Imperial)
Gradeability (CE imperial)
Inside turning radius (CE imperial)
Outside turning radius (CE imperial)
Tires (CE imperial)
Drive system (CE imperial)
Power source (CE Imperial)
Charger (CE imperial)
Weight (CE imperial)
Max. working height (CE metric)
Max. platform height (CE metric)
Platform size (stowed) (CE metric)
Platform size (extended) (CE metric)
Overall length (with step) (CE metric)
Overall length (without step) (CE metric)
Overall width (CE metric)
Stowed Height (CE Metric)
Min. height (guardrails folded) (CE metric)
Ground clearance (stowed) (CE metric)
Ground clearance (elevated) (CE metric)
Platform capacity (SWL - CE Metric)
Max. wind speed (CE metric)
Max. drive height (CE metric)
Max. drive speed (stowed) (CE metric)
Max. drive speed (elevated) (CE metric)
Raise/lower time (CE Metric)
Gradeability (CE metric)
Inside turning radius (CE metric)
Outside turning radius (CE metric)
Tires (CE metric)
Drive system (CE metric)
Controls (CE metric)
Power source (CE Metric)
**Charger (CE metric) (**out of alphabetical order)
Weight (CE Metric)
Ground clearance (elevated) (ANSI metric)
Max. working height
26 ft
Max. platform height
20 ft
Stowed height
85.25 in
Platform size (stowed)
28.25 in x 84.38 in
Platform size (extended)
28.25 in x 102.38 in
Deck extension length
36 in
Min. height (guardrails folded)
67.75 in
Ground clearance (stowed)
3.75 in
Ground clearance (elevated)
.75 in
Platform capacity (SWL)
900 lbs
Overall width
32 in
Overall length (with step)
90.6 in
Overall length (without step)
88.75 in
Max. wind speed
28 mph
Max. drive height
20 ft
Max. drive speed (elevated)
0.4 mph
Max. drive speed (stowed)
2.0 mph
Raise / lower time
34 / 43 sec
Gradeability
25%

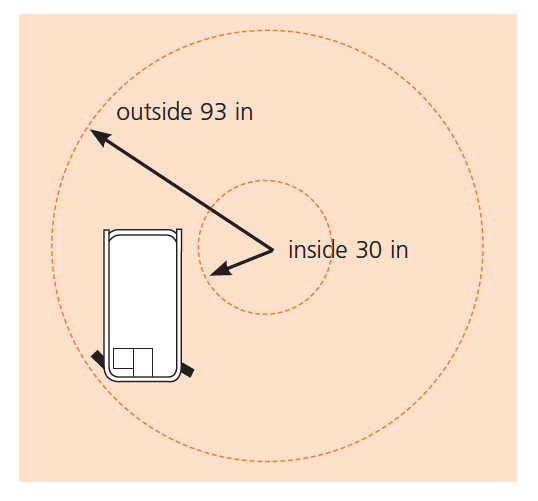

Inside turning radius
30 in
Outside turning radius
93 in
Tires
15 x 4 non-marking rubber
Controls
Proportional
Drive system
2 wheel drive
Power source
24V DC battery electric
Charger
90 - 240V, 25 amp
Weight
4,500 lbs

Specifications subject to change without notice. The equipment hereunder have been subject to limited testing, and any performance specifications and representations are the result of limited testing. Photos and diagrams are shown for illustrative purposes only. Snorkel makes no warranty, representation, or guarantee regarding the information contained herein or the suitability of its equipment for any particular purpose. It is the Buyer’s responsibility to independently determine suitability of any equipment or parts, and to test and verify the same. Refer to appropriate Snorkel operator’s manual for detailed instructions on the proper use and maintenance.

Last Updated
01/2019

Standard Features

  • Roll-out deck extension with dual locks
  • Non-marking tires
  • Swing-out service trays
  • Saloon-door style entry gates
  • Descent alarm
  • All motion alarm
  • Proportional controls, including descent
  • Key switch
  • 2 persons indoors
  • 1 person outdoors (S3220E only)
  • Loading pendant
  • Power line to platform
  • Hour meter & on-board diagnostics display
  • Integrated battery charger
  • Battery condition indicator
  • Crane & forklift points
  • Dual lanyard attachment points
  • Scissor stack roller slide plates (set of 2)
  • 2 year parts & labor, 5 year structural warranty

Options

  • Special paint colors
  • Flashing amber light
  • 110V AC 800W inverter
  • Airline to platform
  • Aircraft bumpguard package
  • Environmental hydraulic oil
  • Snorkel Guard™ secondary guarding system
  • Platform overload system
