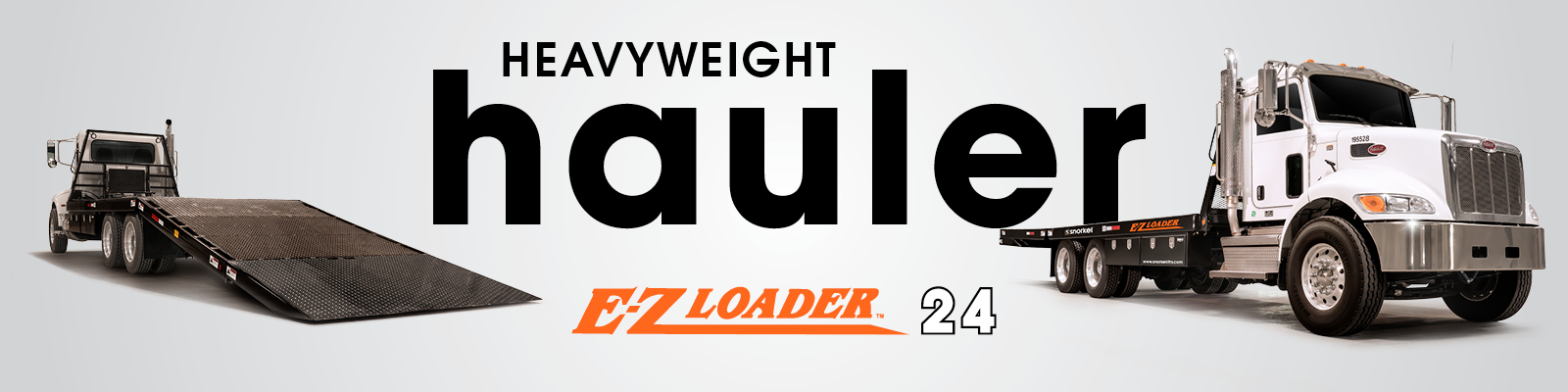

Heavyweight Hauler - E-Z Loader 24
24,000 lbs Bed Capacity
10,000 lbs Tow Capacity
17 ft 3 in Bed Length

E-Z24

The Snorkel E-Z24 E-Z Loader truck bed goes the distance. The largest in the family, this E-Z Loader makes hauling equipment safe and productive with rapid ramp deployment, a traction plate full ramp, and impressive bed capacities.

Specifications

Bed width
Bed capacity
Dove tail lift capacity
Tow capacity
Approximate G.V.W.
Hydraulic P.T.O.
Overall bed (w x l)
Main bed (w x l)
Bed length
Dove tail (w x l)
Flip tail (w x l)
Bulk head height
Cab to axle length
Ramp length
Bed height
Max. dock height
Ramp ° / %
Hitch receiver tube
Wood Thickness
Min. chassis frame rail height
Bed capacity (ANSI metric)
Dove tail lift capacity (ANSI metric)
Tow capacity (ANSI metric)
Approximate G.V.W. (ANSI metric)
Hydraulic P.T.O. (ANSI metric)
Overall bed (w x l) (ANSI metric)
Main bed (w x l) (ansi metric)
Bed length (ANSI metric)
Dove tail (w x l) (ANSI metric)
Flip tail (w x l) (ANSI metric)
Bulk head height (ANSI metric)
Cab to axle length (ANSI metric)
Ramp length (ANSI metric)
Bed height (ANSI metric)
Max. dock height (ANSI metric)
Ramp ° / % (ANSI metric)
Hitch receiver tube (ANSI metric)
Wood Thickness (ANSI metric)
Min. chassis frame rail height (ANSI metric)
Bed width
8 ft 6 in
Bed capacity
24,000 lbs
Dove tail lift capacity
15,000 lbs
Tow capacity
10,000 lbs
Approximate G.V.W.
48,000 lbs
Hydraulic P.T.O.
14 gallons
Overall bed (w x l)
8 ft 6 in x 27 ft 6 in
Main bed (w x l)
8 ft 6 in x 17 ft 3 in
Bed length
17 ft 3 in
Dove tail (w x l)
8 ft 6 in x 10 ft
Flip tail (w x l)
8 ft 6 in x 5 ft 3 in
Bulk head height
5 ft
Cab to axle length
13 ft 8 in
Ramp length
14 ft 9 in
Bed height
4 ft
Max. dock height
6 ft 3 in
Ramp ° / %
18° / 32%
Hitch receiver tube
2 in
Wood Thickness
1 in
Min. chassis frame rail height
41.58 in

Specifications subject to change without notice. The equipment hereunder have been subject to limited testing, and any performance specifications and representations are the result of limited testing. Photos and diagrams are shown for illustrative purposes only. Snorkel makes no warranty, representation, or guarantee regarding the information contained herein or the suitability of its equipment for any particular purpose. It is the Buyer’s responsibility to independently determine suitability of any equipment or parts, and to test and verify the same. Refer to appropriate Snorkel operator’s manual for detailed instructions on the proper use and maintenance.

Last Updated
02/2019

Standard Features

  • Bulkhead bolted to the frame
  • Traction plate full ramp
  • Knife edge ramp
  • Chain tie-down points (every 1 ́ 2 ̋ to 1 ́ 10 ̋)
  • Dock loading ability
  • Nylon strap tie-down points
  • Positive tail lock (non-hydraulic)
  • 1 year all components, 3 year structural warranty (bed only)

Options

  • Special paint colors
  • 4 ́ tool box (rec. EZ12 / EZ24)
  • 5 ́ tool box (rec. EZ18)
  • 6 ́ tool box (rec. EZ12 / EZ18 / EZ24)
  • 8 ́ tool box (rec. EZ24)
  • 5 ́ emergency light bar
  • LED loading work lights (each)
  • 10,000 lbs hydraulic winch with level winder (weight 150 lbs)
  • 15,000 lbs hydraulic winch with level winder (weight 200 lbs)
  • 2 way “winch only” operation (50 ́ corded pendant)
  • 2 way “winch only” operation (wireless radio remote)
  • 6 way “winch & bed” operation (corded pendant)
  • 6 way “winch & bed” operation (wireless radio remote)
  • PTO electric
  • PTO pump
  • PTO airshift
  • Chrome lug nut covers
  • Chrome hub caps
  • 1/4” aluminum diamond plate bulk head cover
